ML-EM-TD-BZ

ML-EM-TD-BZ

  • certifications
  • certifications
  • certifications

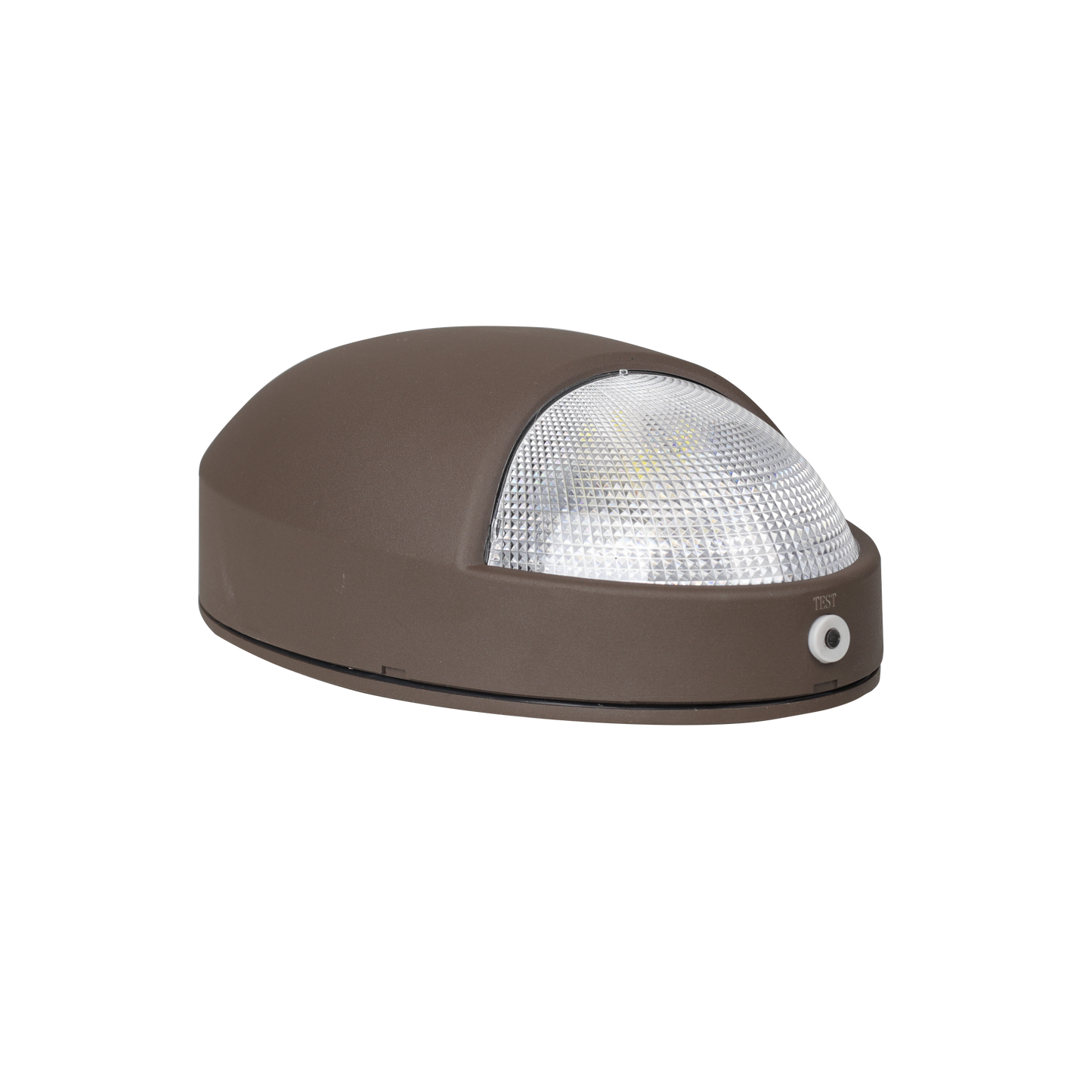

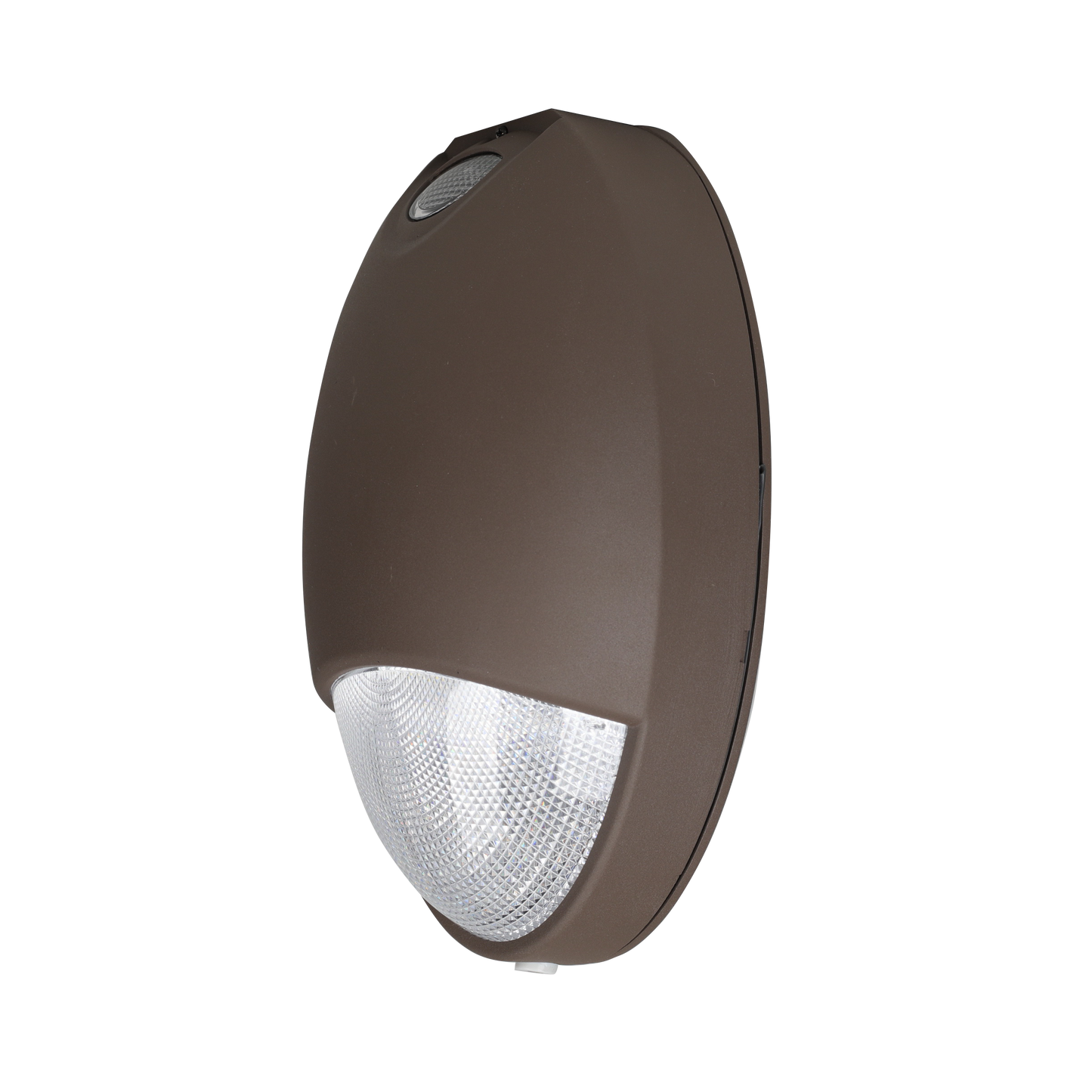

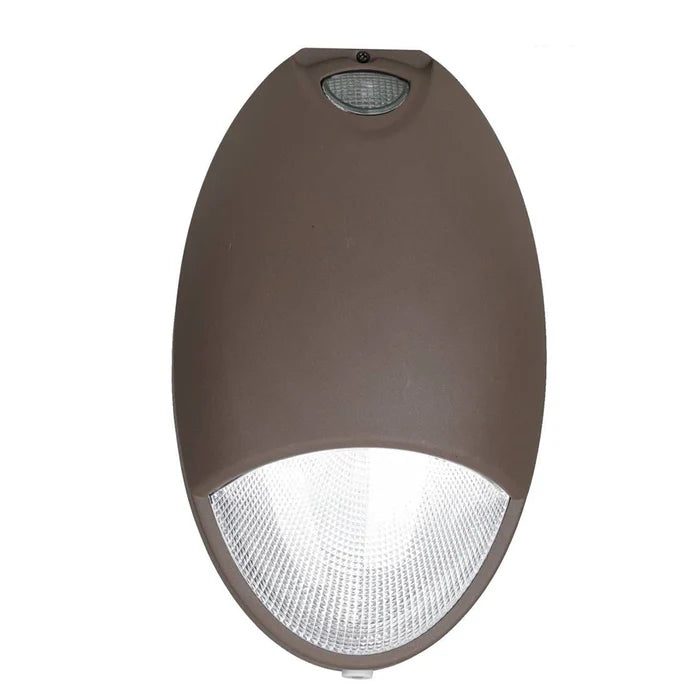

Die cast aluminum alloy housing.  Photocell and self-diagnostic included.  Polycarbonate lens and specular reflector for better light distribution.  Suitable for outdoor use with UL Wet Locations Listed.  12W 1100 lumens in AC mode and 5W 430 lumens in emergency mode.  90 min discharge time.
View full details

Applications:

  • Warehouses, hallways, stairways, commercial and retail environments

Key Features:

  • High impact industrial grade diecast aluminum housing with polycarbonate lens
  • 90 minute battery backup run time
  • 1 for 1 replacement for standard incandescent
    emergency unit
  • High brightness, emergency power is 5W max at 430 lumens. Normal AC source power is 12W at 1100 lumens
  • Wide Voltage AC 100-277V
  • UL Listed

Specifications

  • INPUT VOLTAGE 100-277V
  • INPUT WATTAGE 12W AC source
    5W Battery Source
  • LUMENS 1100 lms (AC source)
    430 lms (Battery source)
  • EFFICANCY 92LM/W
    86 LM/W
  • RATED LIFE >50,000hrs
  • OPERATING TEMPERATURE -40 °F to 104 °F
  • CERTIFICATION UL
  • MODEL NUMBER ML-EM-TD-BZ

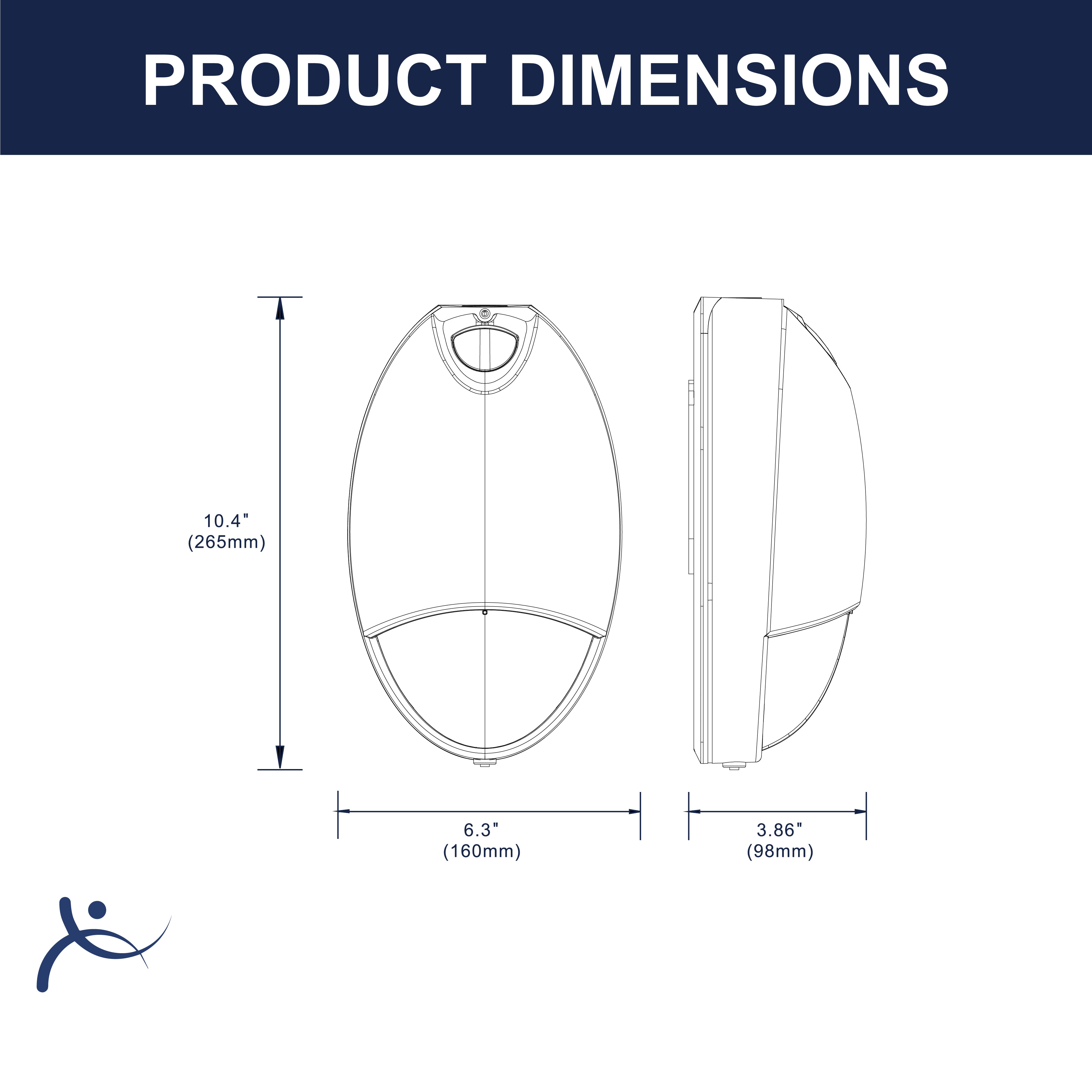

  • DIMENSION 10.4" x 6.3"x 3.86"
  • WEIGHT 6.11 lb
  • MODEL NUMBER ML-EM-EXIT-1.5W

Download

  • Model No.
  • ML-EM-TD-BZ
  • ML-EM-TD-BZ
  • Wattage
  • 12W AC source
  • 5W Battery source
  • CCT
  • 5000K
  • 5000K
  • Lumens
  • 1100 lms (AC source)
  • 430 lms (battery source)

ML-EM-TD-BZ
