ML-BL-74X Series

ML-BL-74X Series

  • certifications
  • certifications
  • certifications
  • certifications
  • certifications
  • certifications
  • certifications

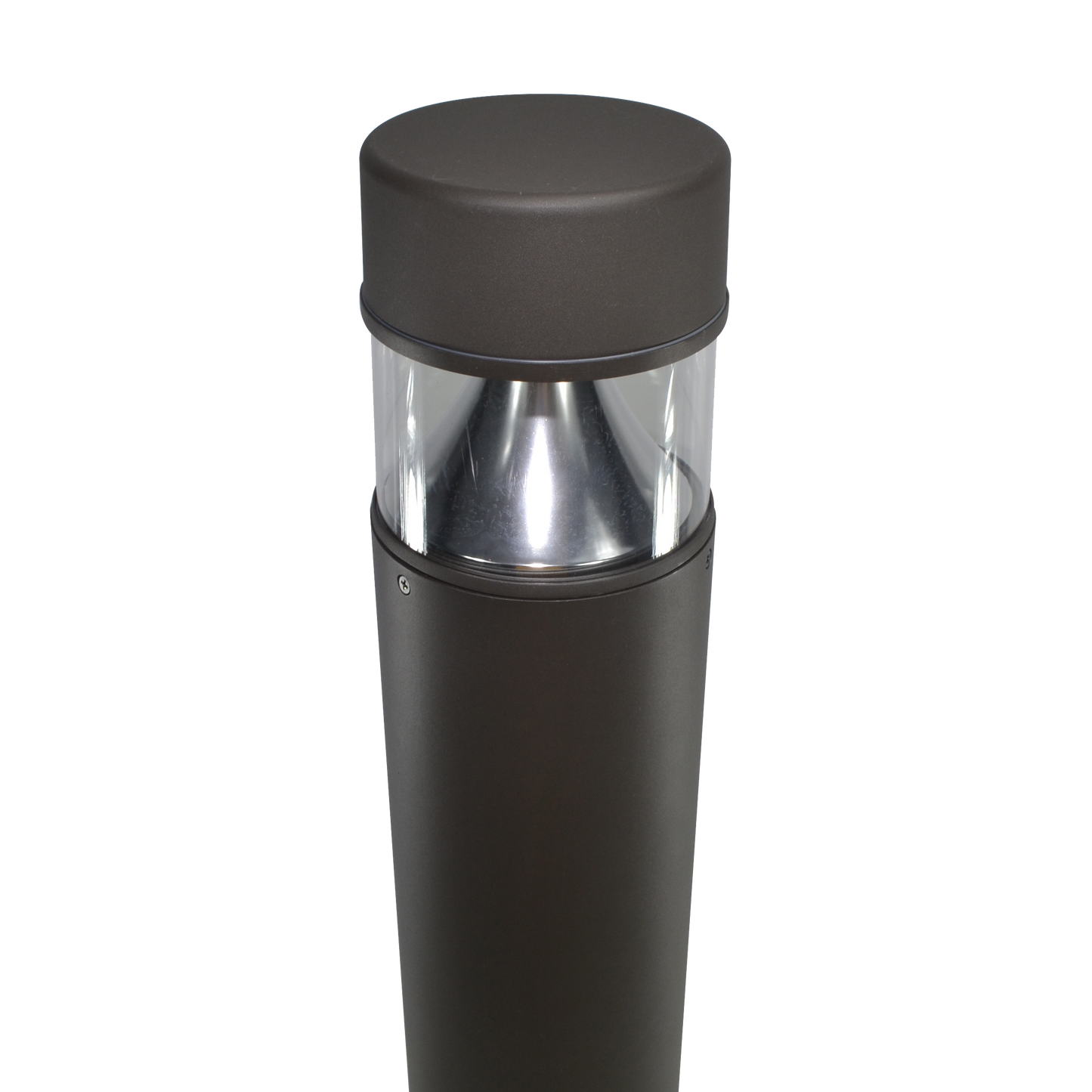

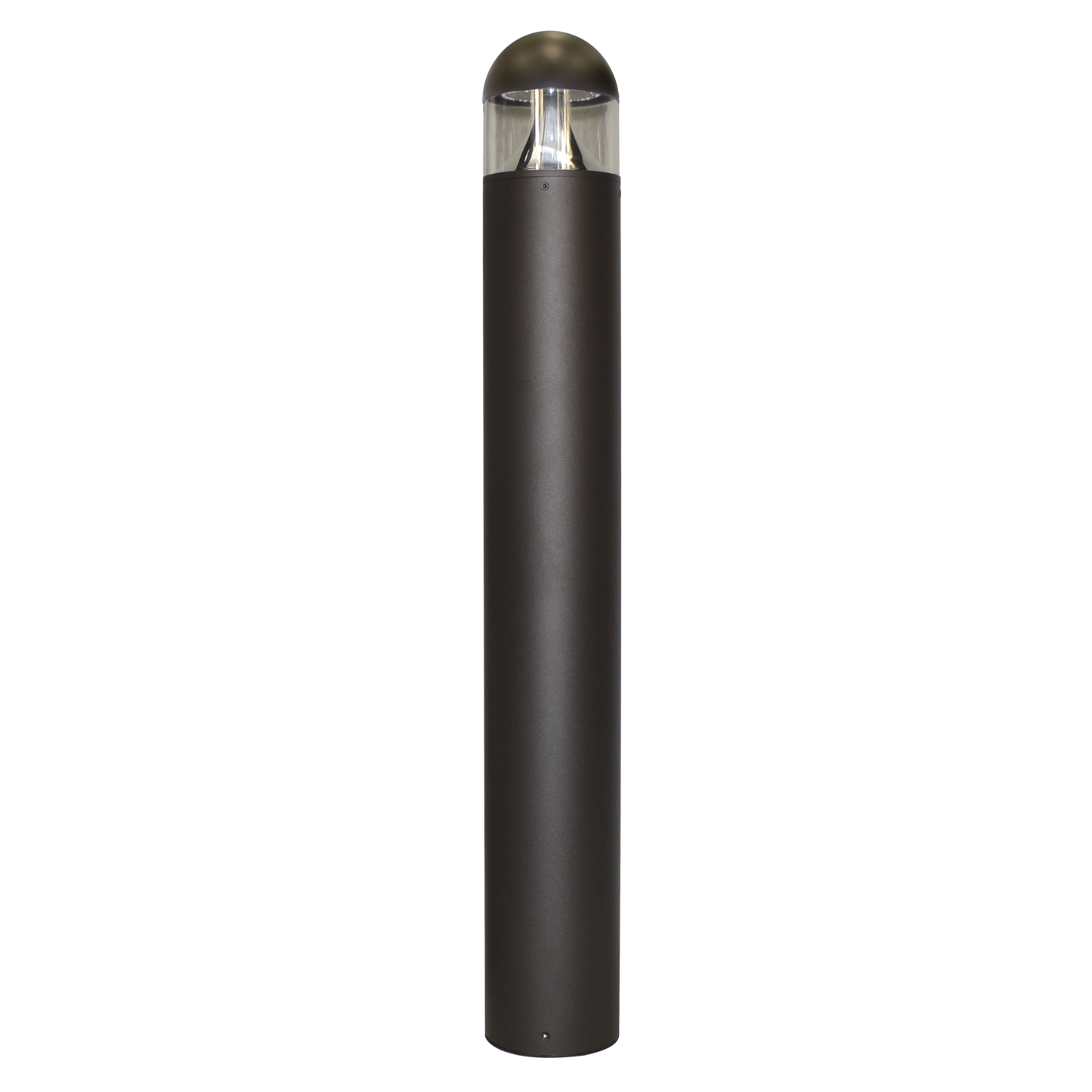

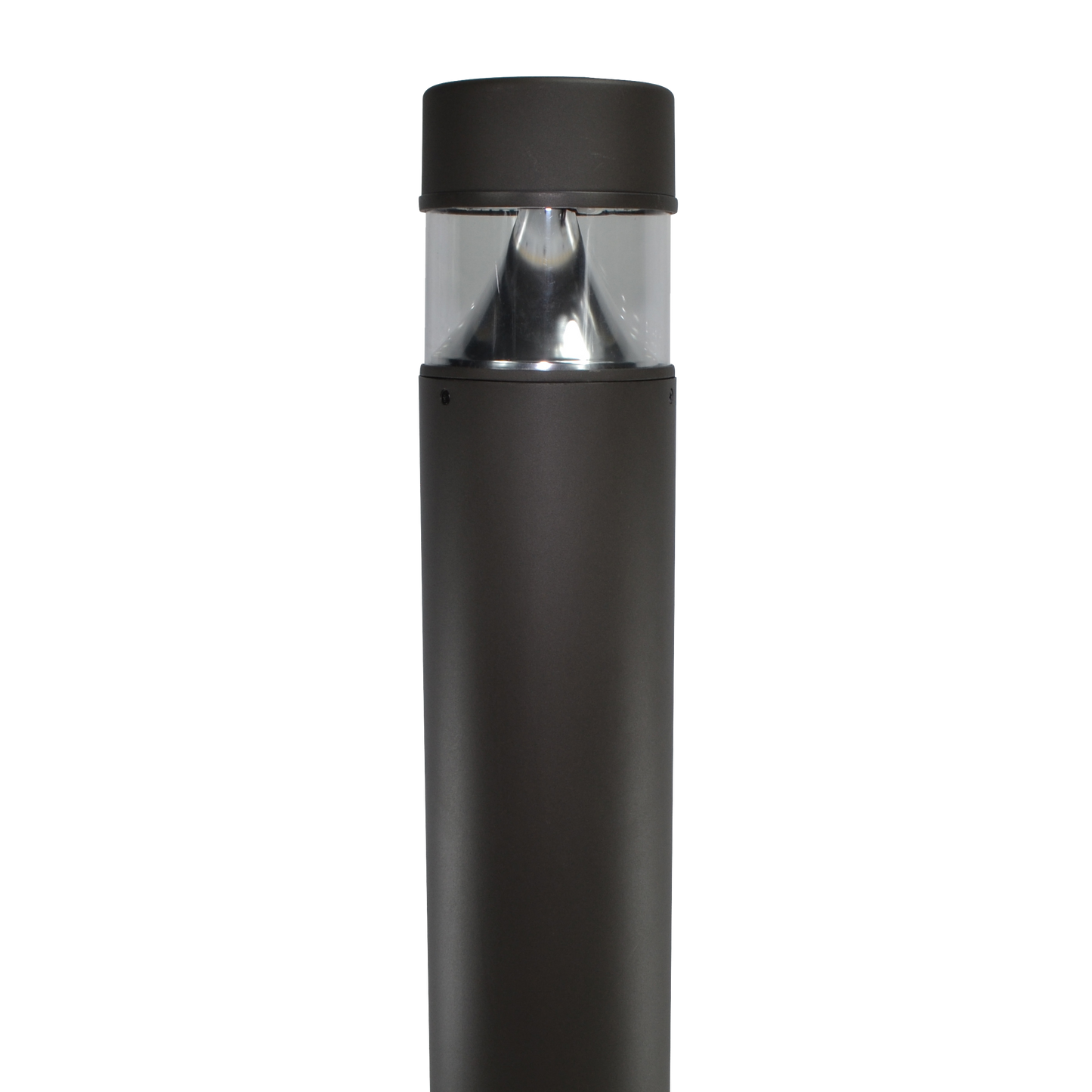

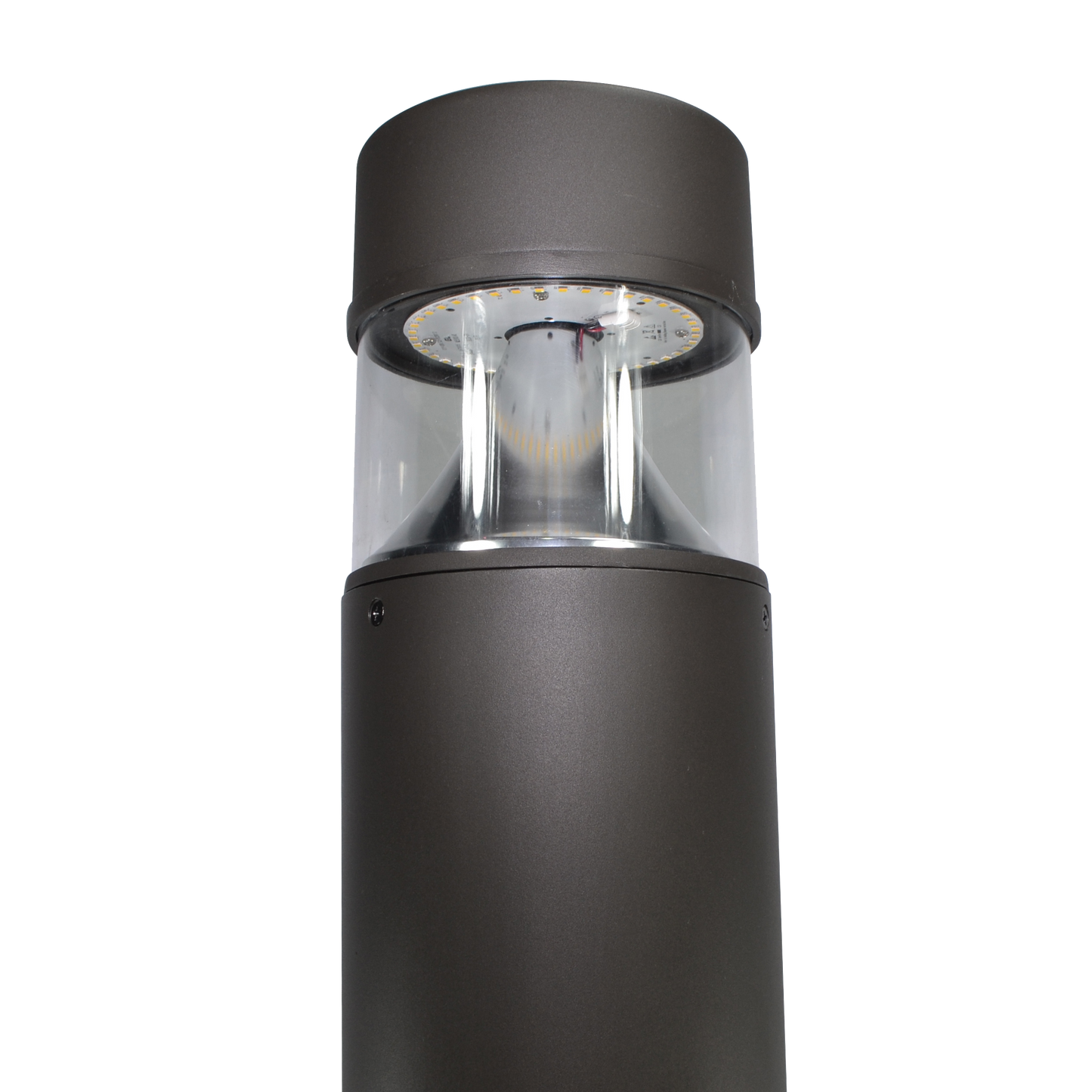

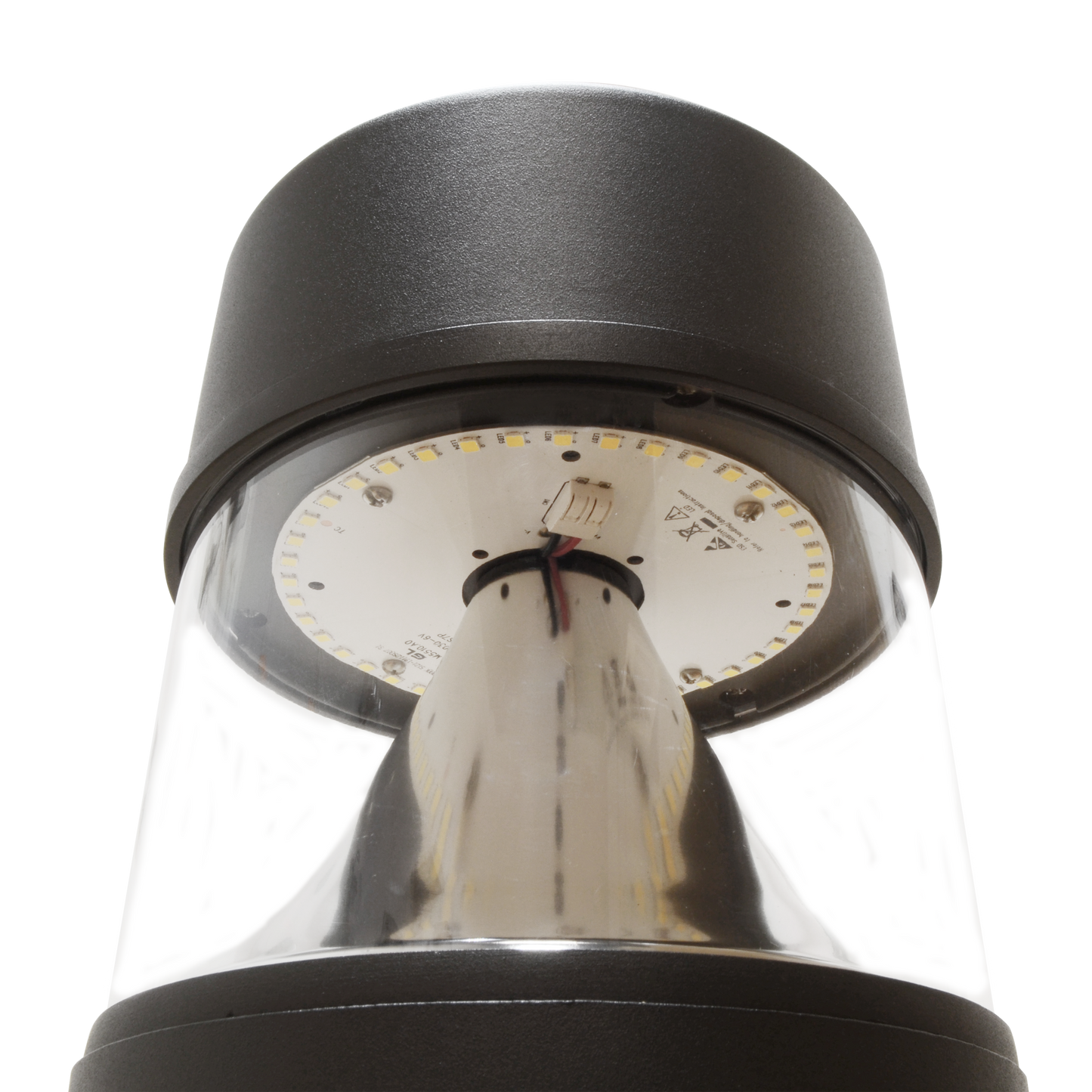

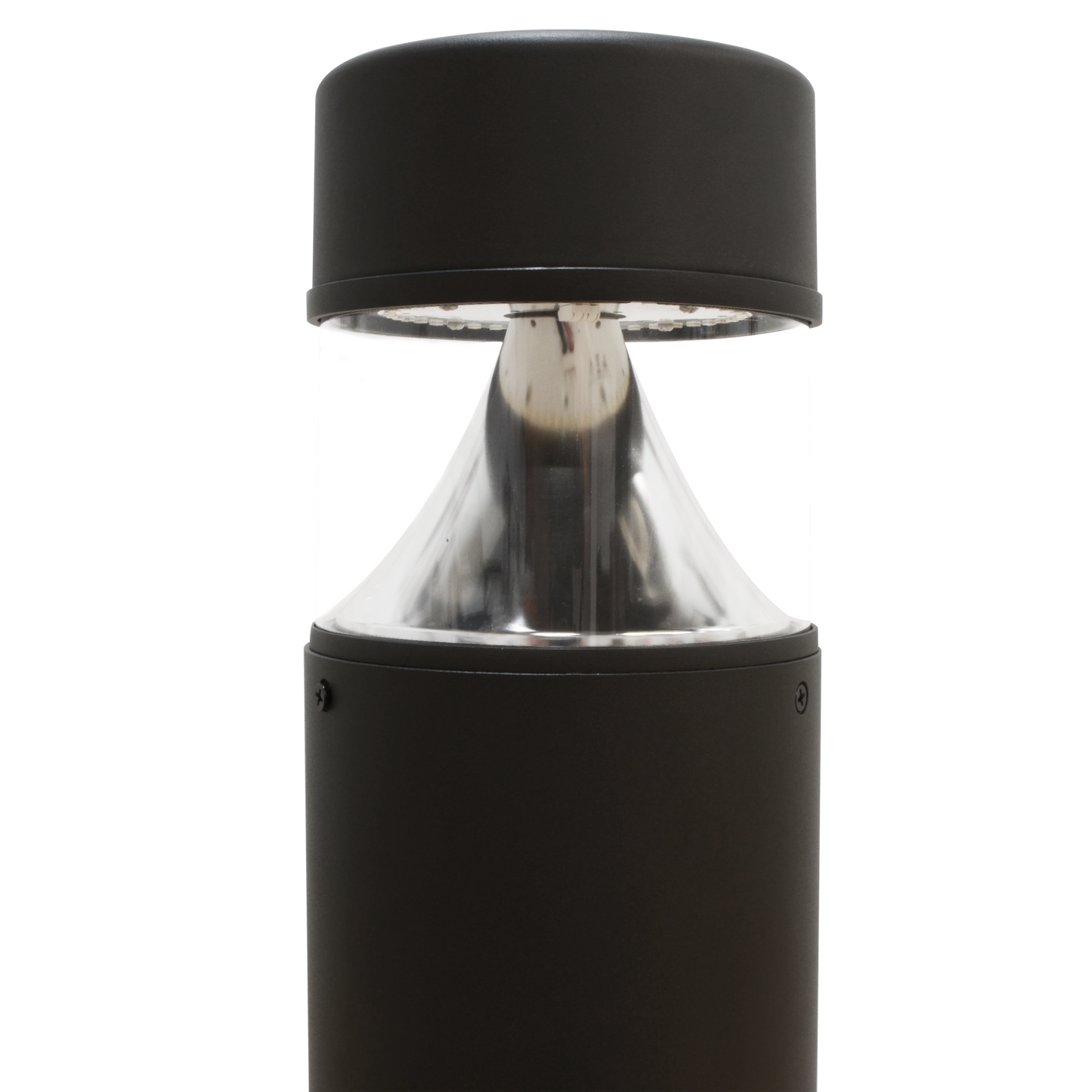

Replaces 150-watt high intensity discharge (HID). 30watt LED Bollard Light with 3997 delivered lumens. 3000K/4000K/5000K, dark bronze, DLC and UL Listed, 5-year limited warranty
View full details

Applications:

  • Bollard Light, Garden Light, Lighting Pedestrian Walkways

Key Features:

  • Universal input voltage (120-277V)
  • Comparable to a 150W metal-halide light
  • Advanced optic system for rebate eligibility
  • 3997 Lumens
  • Dark bronze aluminum housing
  • Input Power of 30 Watts/20 Watts/10 Watts
  • 3000K/4000K/5000K Daylight Warm Color Output
  • UL Listed and suitable for wet locations
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 10/20/30W
  • LUMENS 3410lms
  • EFFICANCY 114LM/W
  • RATED LIFE >50,000hrs
  • DIMMABLE 0-10V
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION UL, Wet Locations, DLC Premium
  • EQUAL TO 150W
  • CRI >70
  • AVAILABLE CCT 3000K/4000K/5000K
  • IP RATING IP65

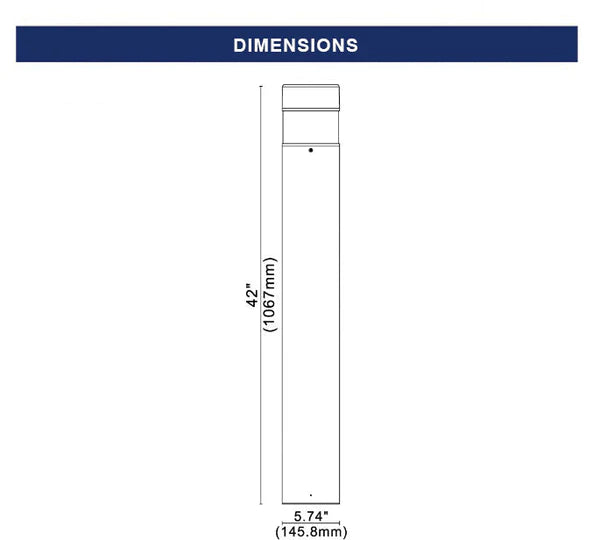

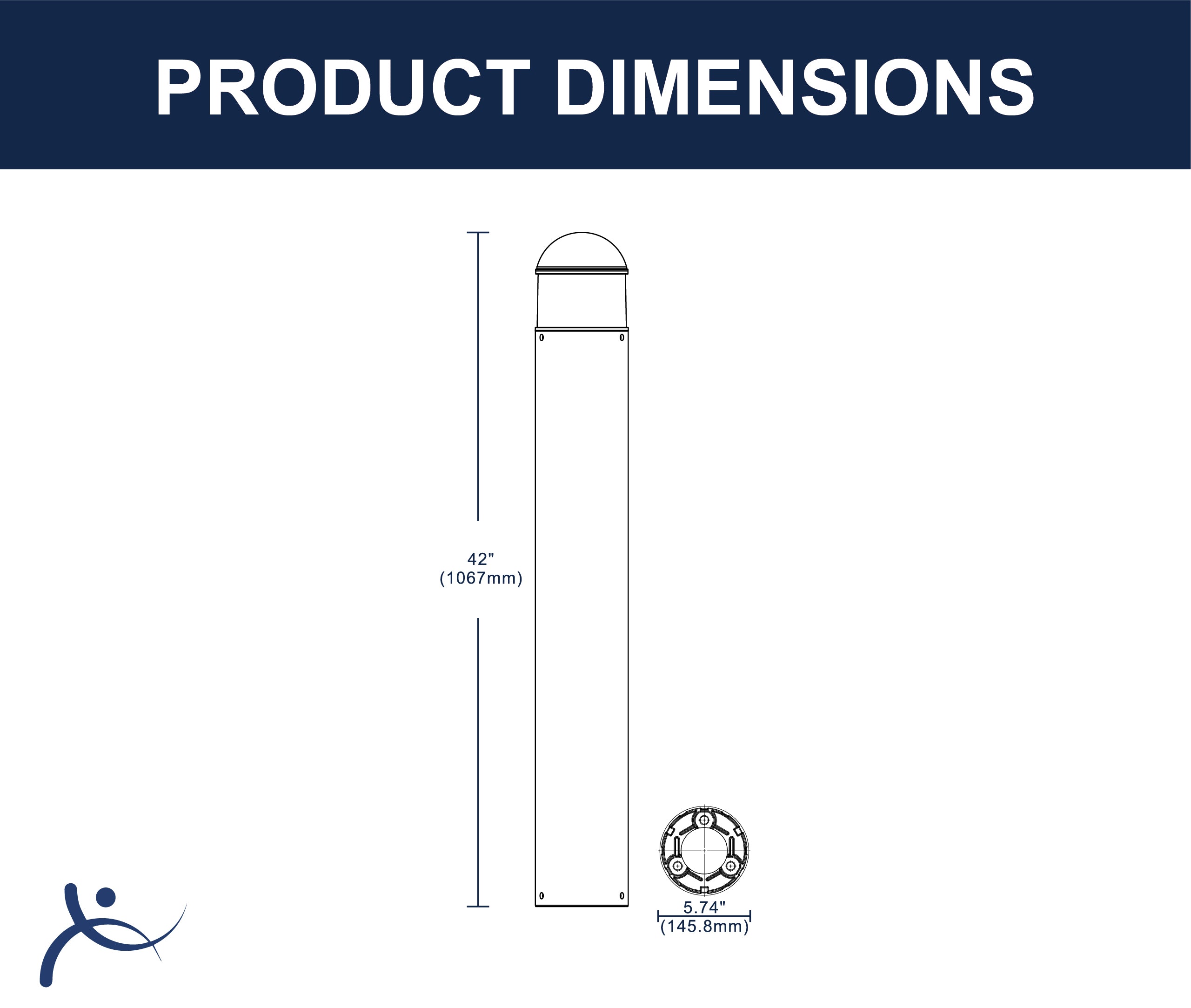

  • DIMENSION 5.74" * 5.74" * 42"
  • WEIGHT 11lbs
  • MODEL NUMBER ML-BL-7493-F-30WT-345K-UV
    ML-BL-7493-R-30WT-345K-UV

Download

  • Model No.
  • ML-BL-7493-30WT-345K-FH-UV
  • ML-BL-7493-30WT-345K-RH-UV
  • Wattage
  • 10W/20W/30W
  • 10W/20W/30W
  • CCT
  • 3000/4000/5000K
  • 3000/4000/5000K
  • Lumens
  • 3410lms
  • 3410lms

ML-BL-7493-30WT-345K-FH-UV

ML-BL-7493-30WT-345K-RH-UV
