ML-AL-7X Series

ML-AL-7X Series

  • certifications
  • certifications
  • certifications
  • certifications
  • certifications
  • certifications

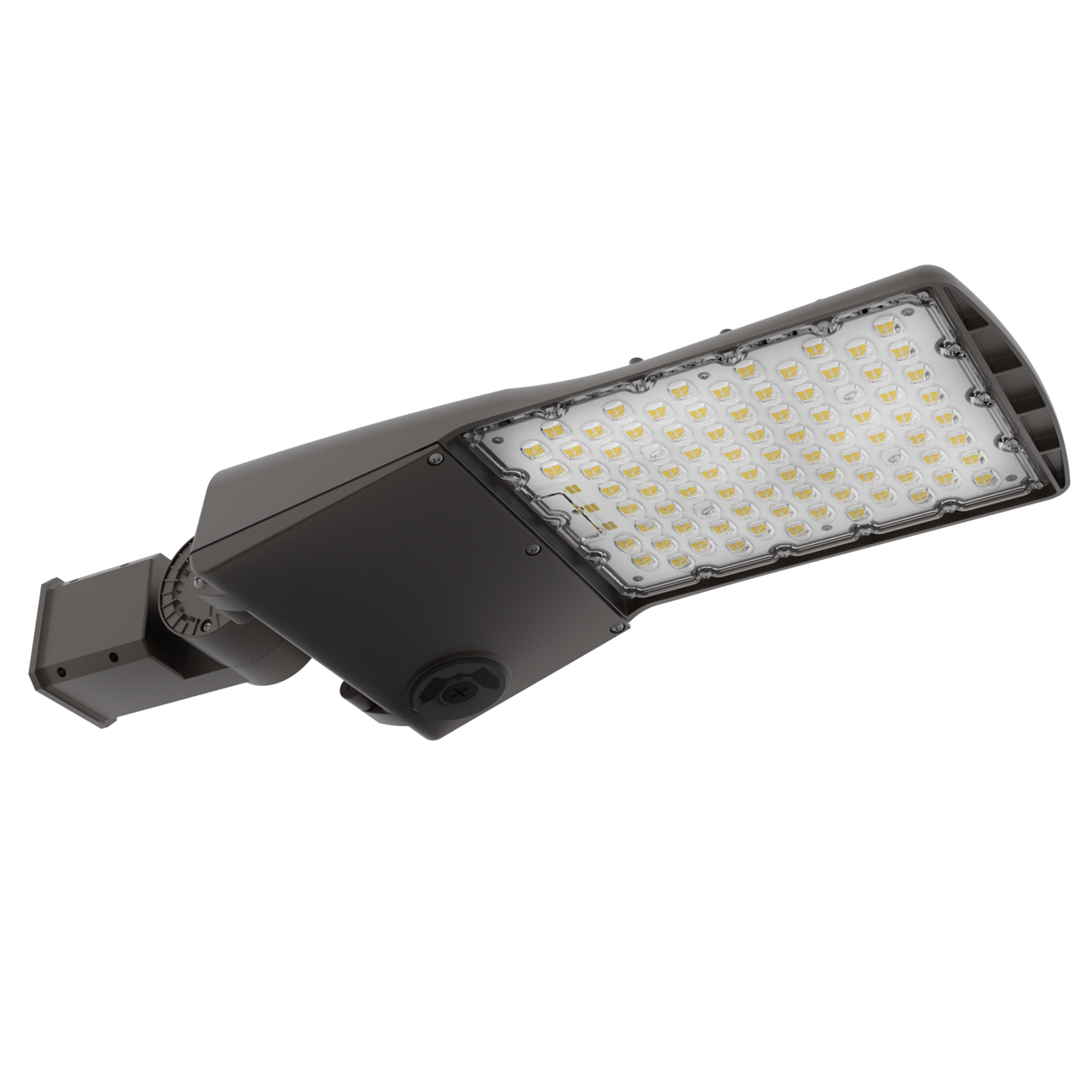

One of Marathon Lighting newest performance grade Area Light family.  With two sizes of output similar to 400W Metal Halide and 1000W Metal Halide respectively, these two fixtures are truly in a class of its own.  Designed with minimizing wind load and providing a slim modern profile, the ML-AL-7X series is a workhorse.  With best in class lumens efficiency and spec grade lighting distributions, these workhorse will last in the field.  3000K/4000K/5000K color temperature and wattage selectability all in one.  Dark bronze, DLC Premium and UL Listed, 5-year limited warranty

View full details

Applications:

  • Parking Lots, Car Dealerships, Shopping centers,

Key Features:

  • Universal input voltage (120-277V)
  • Two Sizes-Comparable to a 400W metal-halide light and 1000W metal-halide light.
  • Advanced optic system with Type III, IV,V options
  • 21777lms and 39957lms best in class lumens performance
  • Dark bronze aluminum housing
  • Input Power of 150 Watts/120 Watts/100 Watts and 210W/250W/290W
  • 3000K./4000K/5000K Daylight White Color Output
  • UL Listed and suitable for wet locations
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 100W/120W/150W
    210W/250W/290W
  • LUMENS 21777lms
    39957lms
  • EFFICANCY 171LM/W
  • RATED LIFE >50,000hrs
  • DIMMABLE 0-10V
  • OPERATING TEMPERATURE -40 °F to 104 °F
  • CERTIFICATION UL, Wet Locations, DLC Premium
  • EQUAL TO 250W
  • CRI >70
  • AVAILABLE CCT 3000/4000/5000K
  • IP RATING IP65

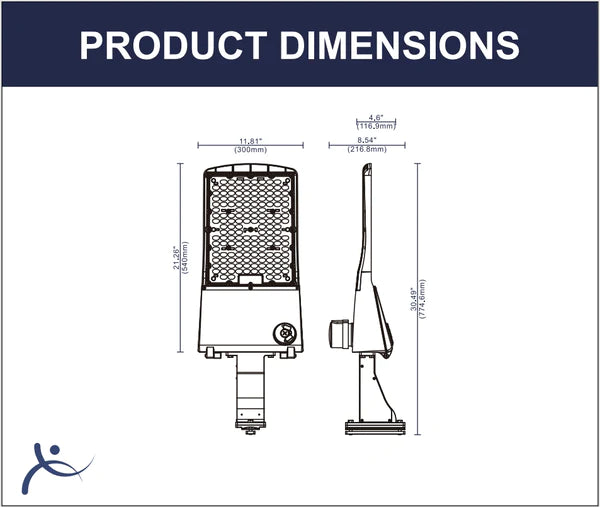

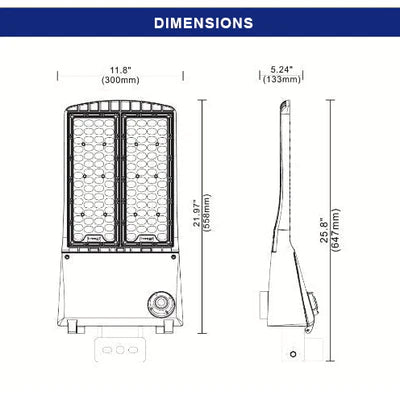

  • DIMENSION 10.7" x 29.7"x 4.48
  • WEIGHT 14.11 lb
  • MODEL NUMBER ML-AL-7993-150WT-345K-UV
    ML-AL-7998-290W-345K-UV

Download

  • Model No
  • ML-AL-7993-150WT-345K-UV
  • ML-AL-7998-290WT-345K-UV
  • Wattage
  • 100W/120W/150W
  • 210W/250W/290W
  • CCT
  • 3000/4000/5000K
  • 3000/4000/5000K
  • Lumens
  • 21777lms
  • 39957lms

ML-AL-7993-150WT-345K-UV

ML-AL-7998-290WT-345K-UV
