ML-WM-6208 CYLINDER SERIES

ML-WM-6208 CYLINDER SERIES

  • certifications
  • certifications
  • certifications
This 4" Cylinder family is capable of wall mount, pendant mount, ceiling mount and direct mounting.  Color Selectable with options of 3000K/4000K/5000K, this slim profile LED cylinder can be used in a range of environments.  When used in the outdoors, the wall mounted LED cylinder has an integrated photocontrol option for on/off capability as well as UP/DOWN/UP-DOWN light distribution option- all easily controlled by micro-sliding switches.  Beam distribution come in 45 degrees and 75 degrees optics
View full details

Applications:

  • Studios, Apartments, Townhomes, Hotels, Offices, Retail, QSR

Key Features:

  • Universal input voltage (120-277V)
  • Comparable to a 50W metal-halide light
  • Advanced optic system for rebate eligibility
  • 1684 Lumens
  • Input Power of max. 15W
  • 3000K/4000K/5000K color selectable Daylight White Color Output

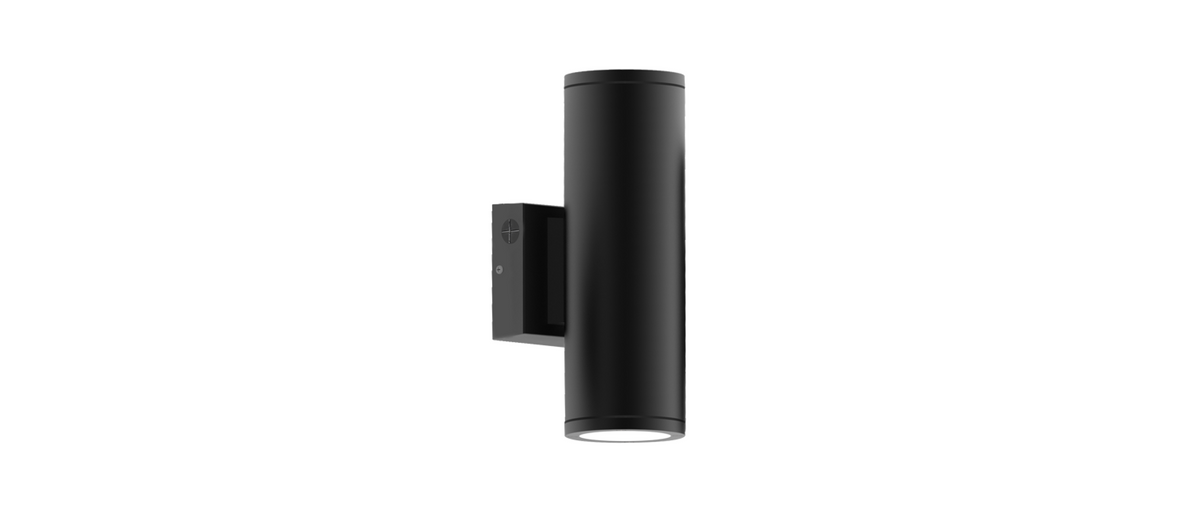

  • Wall Mount version has On/Off Photocontrol capability
  • Wall Mount version has Up/Down/Up-Down beam distribution capability.
  • UL Listed and suitable for wet locations
  • 5 Year Warranty

Specifications

  • INPUT VOLTAGE 120-277V
  • INPUT WATTAGE 25W
  • LUMENS 2590lms
    2565lms
    2565lms
  • RATED LIFE >50,000hrs
  • DIMMABLE 0-10V
  • OPERATING TEMPERATURE -30 °F to 104 °F
  • CERTIFICATION UL, Wet Locations, DLC Premium
  • EQUAL TO 100W MH
    100W MH
    100W MH
  • CRI >70
  • AVAILABLE CCT 3000K/4000K/5000K
  • IP RATING IP65

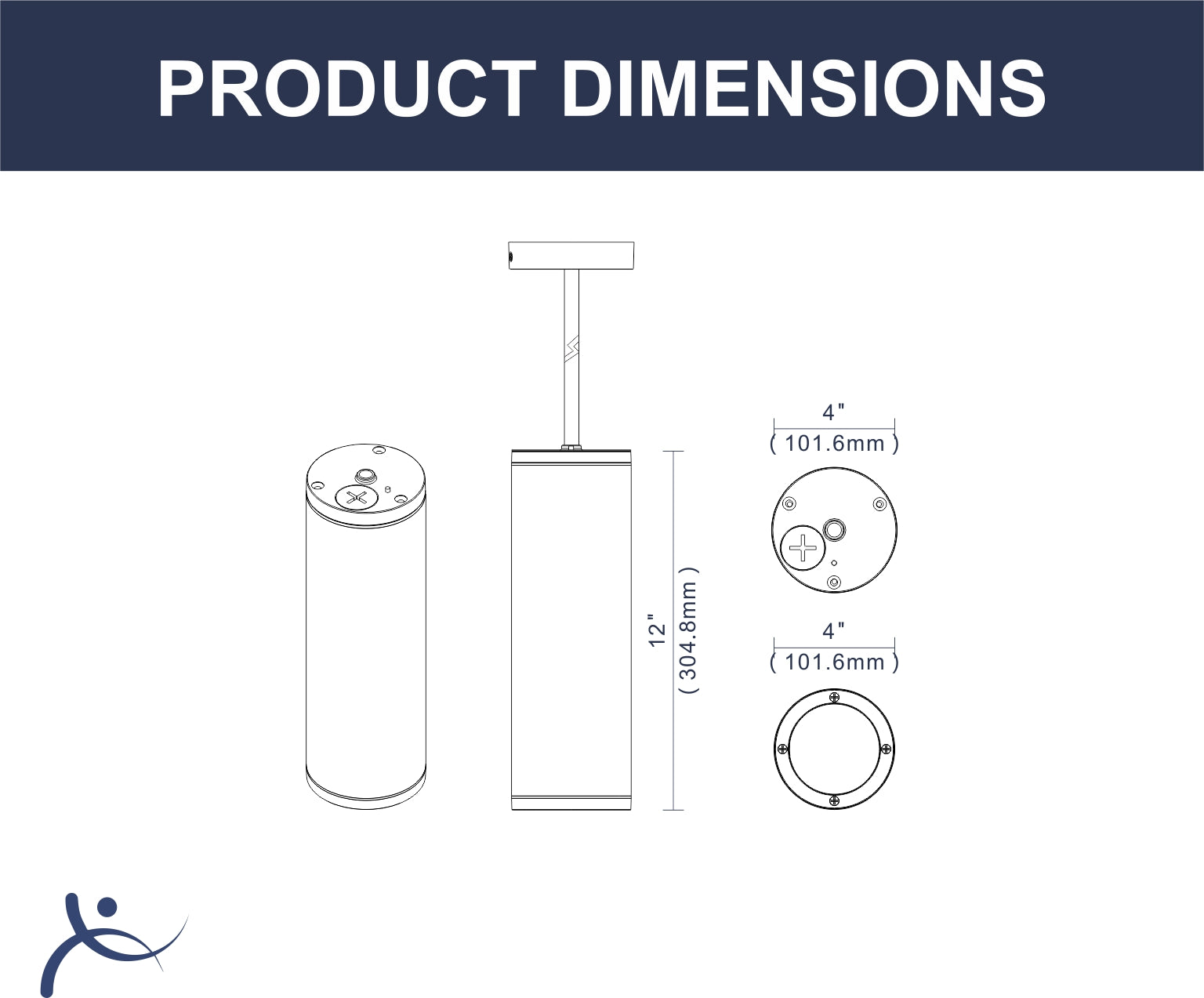

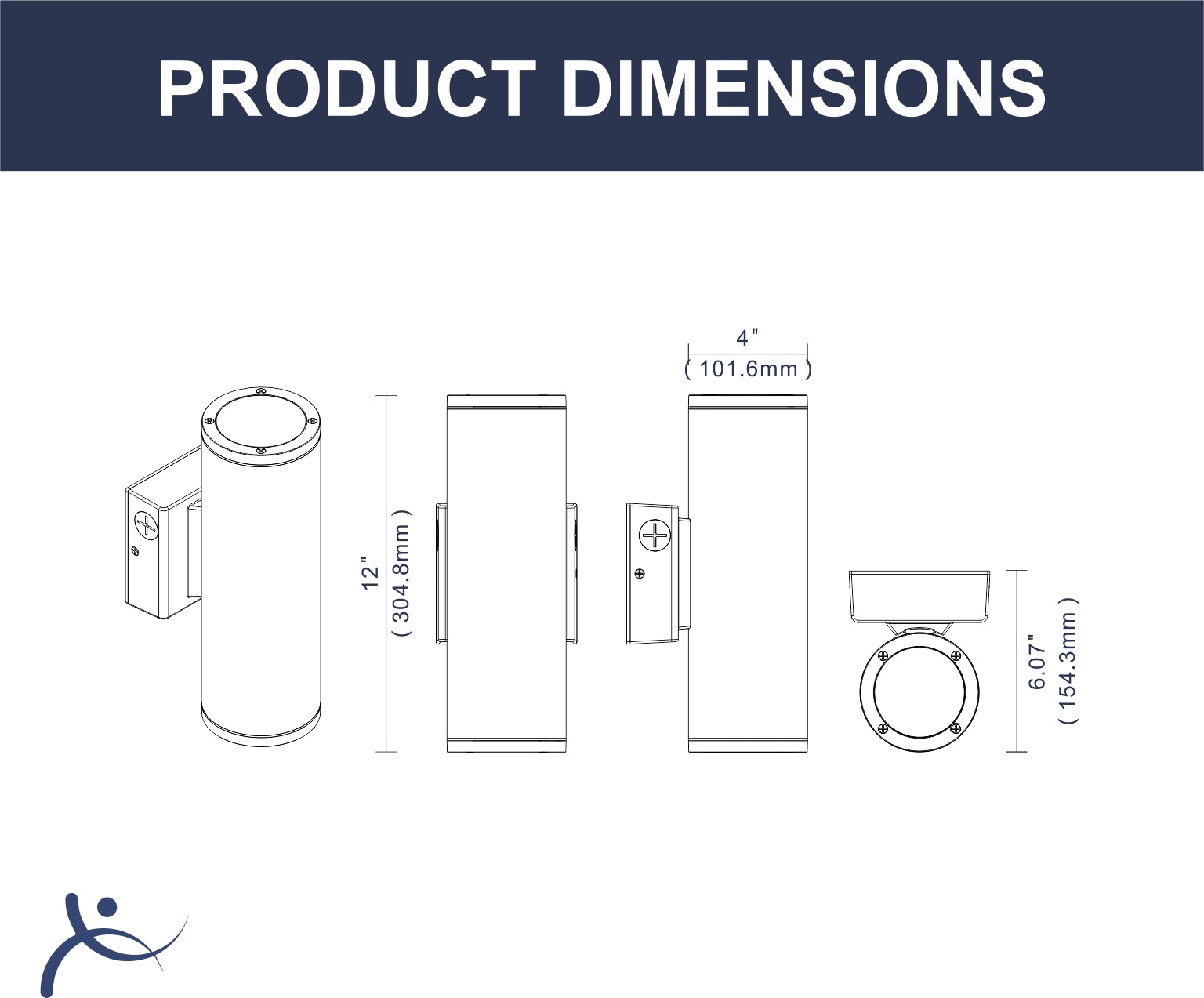

  • DIMENSION 4" x 4" x 12"
    4" x 4" x 12"

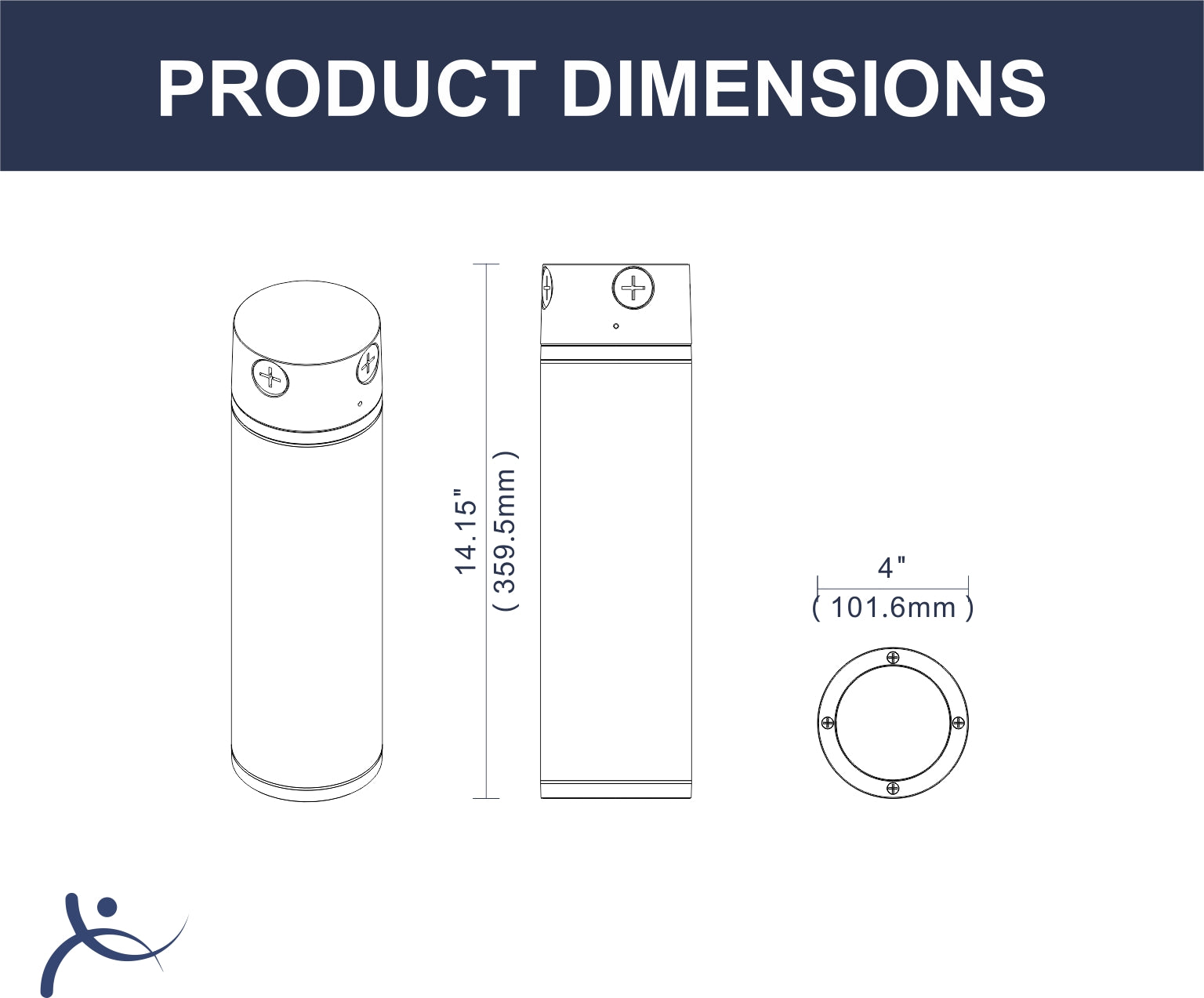

    4" x 4" x 14.15"

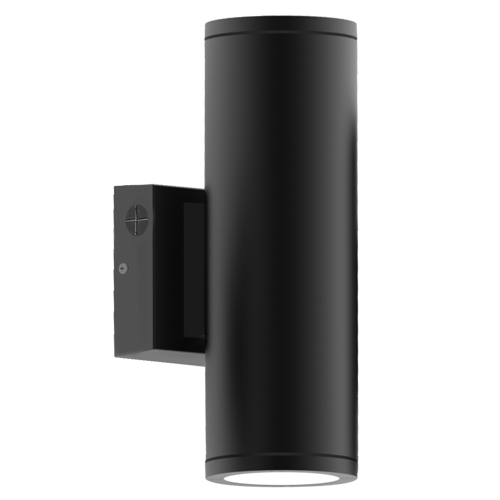

  • MODEL NUMBER ML-WM-6208-25W-345K-UV-W
    ML-WM-6208-25W-345K-UV-C
    ML-WM-6208-25W-345K-UV-D
  • WEIGHT 19.88 lbs
    19.50 lbs
    20.50 lbs

Download

  • Model No.
  • ML-WM-6208-25W-345K-UV-W
  • ML-WM-6208-25W-345K-UV-C
  • ML-WM-6208-25W-345K-UV-D
  • Wattage
  • 25W
  • 25W
  • 25W
  • CCT
  • 3000K/4000K/.5000K
  • 3000K/4000K/.5000K
  • 3000K/4000K/.5000K
  • Lumens
  • 2590lms
  • 2565lms
  • 2565lms

ML-WM-6208-25W-345K-UV-W

ML-WM-6208-25W-345K-UV-C

ML-WM-6208-25W-345K-UV-D
